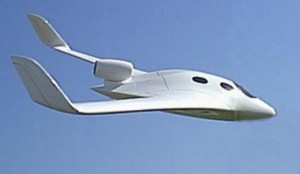

BWB Jet Profiles

Wingco seeks a partner interested in developing a family of certified turbofan BWB aircraft:

1.) TRAINER single FJ22 turbofan, 600lbf, 3 place, fixed gear, 250knots.

2.) RETRACTABLE single FJ22 turbofan, 600lbf, 4 place, pressurized, 325knots.

3.) TWIN turbofan, FJ22, pressurized to 25,000’,4 place, retractable, 350knots

4.) SINGLE FJ33, 1200lbf,pressurized to 41,000’, 4 place,retractable,490knots.

All-plane-chute, and Crestfoam filled fuel tanks in all models

BWB TRAINER SINGLE FJ22 TURBOFAN
Engine	Williams FJ22
Sea Level Thrust	700lbf, de-rated to 600lbf
Length	24 feet
Wing Span	28 feet
Height	6 feet
Interior Length	96 inches
Interior Height	44 inches
Seats	3
Maximum Ramp Weight	2400 lbs
Empty Weight	1100 lbs
Fuel Capacity	600 lbs
Useful Load	1300 lbs
Cruise Speed at 10,000'	250 Knots
Take-off	2500 feet
Landing	2500 feet
Rate of Climb	3000 ft/min
Range, 3 occupants	1000 nm

BWB RETRACTABLE SINGLE FJ22 TURBOFAN
Engine	Williams FJ22
Sea Level Thrust	700lbf, de-rated to 600lbf
Length	24 feet
Wing Span	28 feet
Height	6 feet
Interior Length	96 inches
Interior Height	44 inches
Seats	4
Rear Seat Width	55 inches
Cargo Areas (2)	15 x 15 x 48 inches each
Retractable Gear
Cabin Altitude at 25,000 feet	8000 feet
Maximum Altitude	25000 feet
Maximum Ramp Weight	2500 lbs
Empty Weight	1100 lbs
Fuel Capacity	600 lbs
Useful Load	1400 lbs
Cruise Speed at 25,000 feet	325 Knots
Take-off	2500 feet
Landing	2500 feet
Rate of Climb	3000 ft/min
Range, 4 occupants	900 nm
Range, 2 occupants	1400 nm

BWB RETRACTABLE TWIN FJ22 TURBOFAN
Engines	Two Williams FJ22
Sea Level Thrust	700lbf, de-rated to 500lbf each engine
Length	24 feet
Wing Span	28 feet
Height	6 feet
Interior Length	96 inches
Interior Height	44 inches
Seats	4
Rear Seat Width	55 inches
Cargo Areas (2)	15 x 15 x 48 inches each
Retractable Gear
Cabin Altitude at 25,000 feet	8000 feet
Maximum Altitude	25000 feet
Maximum Ramp Weight	2800 lbs
Empty Weight	1400 lbs
Fuel Capacity	1000 lbs
Useful Load	1400 lbs
Cruise Speed at 25,000 feet	350 Knots
Take-off	2500 feet
Landing	2500 feet
Rate of Climb	3000 ft/min
Range, 4 occupants	1000 nm
Range, 2 occupants	1500 nm

BWB RETRACTABLE SINGLE FJ33 TURBOFAN
Engine	Williams FJ33
Sea Level Thrust	1200lbf
Length	24 feet
Wing Span	28 feet
Height	6 feet
Interior Length	96 inches
Interior Height	44 inches
Seats	4
Rear Seat Width	55 inches
Cargo Areas (2)	15 x 15 x 48 inches each
Retractable Gear
Cabin Altitude at 41,000 feet	8000 feet
Maximum Altitude	41000 feet
Maximum Ramp Weight	2800 lbs
Empty Weight	1400 lbs
Fuel Capacity	1000 lbs
Useful Load	1400 lbs
Cruise Speed at 41,000 feet	490 Knots
Take-off	2500 feet
Landing	2500 feet
Rate of Climb	3000 ft/min
Range, 4 occupants	1200 nm
Range, 2 occupants	1800 nm
